PostPosted: 09/02/2009 3:06 pm    Post subject: มาสำรวจย่านสถานีบ้าง Reply with quote

มาสำรวจบริเวณย่านสถานีกันบ้างครับว่ามีอะไรน่าสนใจบ้าง เริ่มจากประแจด้านเหนือ (ด้านบ้านโป่ง)

ประแจด้านทิศเหนืออยู่ระหว่าง สทล. 73/6 กับ 73/7 ครับ ภาพนี้มองมาทางใต้เข้ามาที่สถานี
Click on the image for full size

ผ่านประแจเข้ามาแล้วมองย้อนไปทางเหนือ
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:09 pm    Post subject: Reply with quote

รางประธานใช้ราง 80 ปอนด์ หมอน monoblock
Click on the image for full size

ส่วนรางหลีกเป็นหมอน dualblock
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:13 pm    Post subject: Reply with quote

ที่นครชุมน์มีสะพานอยู่ภายในเขตสถานีด้วยครับ โดยอยู่ด้านเหนือของอาคารสถานี ระหว่าง สทล.73/8 กับ 73/9 จึงต้องมีสะพานที่รางหลีกด้วย

สะพานของรางประธาน
Click on the image for full size

สะพานของรางหลีก
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:17 pm    Post subject: Reply with quote

มาดูสะพานของรางประธานก่อนครับ

เริ่มจากเพลทชื่อผู้สร้าสะพาน และพิกัดรับน้ำหนักของตัวสะพาน
Click on the image for full size

พิกัดรับน้ำหนักที่ฐานบริเวณคอสะพาน
Click on the image for full size

เพลทรายละเอียดการก่อสร้างสะพาน
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:19 pm    Post subject: Reply with quote

ข้ามมามองจากด้านใต้ครับ

มุมมองเฉียงๆ
Click on the image for full size

มองหน้าตรง
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:22 pm    Post subject: Reply with quote

สะพานของรางประธานนี้ใช้หมอนเหล็กครับ
Click on the image for full size

ภาพคู่ของสะพานต่างยุคต่างสมัยที่มาทำงานอยู่เคียงข้างกัน
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:25 pm    Post subject: Reply with quote

มาสำรวจสะพานของรางหลีกบ้างครับ

เริ่มจากภาพหน้าตรงมองขึ้นไปทางเหนือ มองไปไกลๆจะเห็นชัดว่าสะพานนี้อยู่ในรางหลีกครับ
Click on the image for full size

มองเฉียงๆบ้าง
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:28 pm    Post subject: Reply with quote

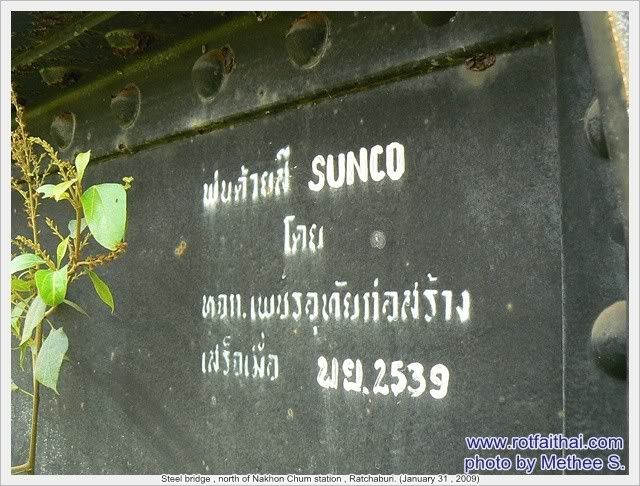

ด้านนอกฝั่งเดียวกับ สทล.มีข้อความนี้ปรากฏอยู่
Click on the image for full size

สภาพไม้หมอนที่ใช้กับสะพานนี้ครับ สภาพที่เห็นไม่น่าไว้วางใจเท่าใด ตอนที่เดินข้ามสะพานนี้ผมจึงเหยียบตามแนวคานสะพานแทนที่จะเดินตรงกลางเหมือนทุกครั้ง
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:33 pm    Post subject: Reply with quote

เดินมาจนถึงปลายสะพานด้านเหนือจึงพบกับ nameplate ของสะพานครับ
Click on the image for full size

จากการเดินดูรอบๆสะพานแล้ว มี nameplate เพียงป้ายนี้ป้ายเดียวครับ
Click on the image for full size

กลับมาด้านใต้ของสะพานใหม่ มองกลับไปทางสถานี พร้อมกับพักการสำรวจด้านเหนือของสถานีไว้ที่ภาพนี้ก่อนครับ
Click on the image for full size
Back to top
View user's profile Send private message
Nakhonlampang
1st Class Pass (Air)
1st Class Pass (Air)


Joined: 29/03/2006
Posts: 3291
Location: เสนานิคม1-คลองหลวง

PostPosted: 09/02/2009 3:43 pm    Post subject: Reply with quote

ข้ามมาสำรวจด้านใต้ของสถานีก่อนครับ ด้านนี้ก็มีสะพานเช่นกัน เพียงแต่ว่าจะอยู่ด้านนอกของประแจออกไปแล้ว สะพานด้านทิศใต้นี้อยู่ระหว่าง สทล.73/16 กับ 74/1 ครับ (ภาพนี้จะเห็นชัดว่าตัวสถานีอยู่ติดกับรางหลีก)
Click on the image for full size

สะพานแห่งนี้ได้รับการปรับปรุงใหม่ หมอนที่ใช้เป็นหมอนเหล็กแล้วครับ
Click on the image for full size
Back to top
View user's profile Send private message
